Vancouver Security Products, Security Cameras, Digital Video Recorders

Products

Security Cameras

The foundation of a security system is type and quality of cameras. Indoor security cameras are not weather proof and will be used to monitor inside a property, while Outdoor cameras will have protection against rain and dust. They can be either simple or vandal proof. Some of them can be used indoor only and some can be used either indoor or outdoor, but an outdoor camera can always be used indoor too. There are 3 different kind of security cameras :
  • Dome Cameras
    • These cameras are in dome shape, ideal for mounting to ceiling. Simple type has a plastic structure and can be used in areas that hitting the camera is not a concern or camera will be installed . There is also vandal proof type which has a metal structure. Both types may have either fix or variable lenses.
      They also comes in day only or day/night. Day only cameras will work in day light or if inside is bright enough. Day/night cameras will have their own infrared LEDs which will be activated automatically if light was not enough. Normally in night time or with LEDs on, they work in black and white mode, but in day light they provide full color images.
  • Box Cameras
    • Box cameras are suitable for indoor applications where either day light is exist or room has enough lights. These cameras are not vandal proof, therefore they are recommended for offices having a security guard on site.
      Normally, box cameras does not have lenses, we install the lens based on requirements of the client and environment. They can use lenses with different characteristics including narrow, wide, low light etc.
      There are some housings that can allow a box camera to be used outdoor. Such housings usually provide protection and also make the camera cool in summer and warm in winter.
  • Bullet Cameras
    • Bullet cameras are the most common form of security cameras, they can be simple or vandal proof, indoor or outdoor, can accept fix or variable lenses and basically they can be used in almost any environment.
      We offer wide range of these cameras, from 420TVL to 600TVL, the higher TVL means better picture and higher quality.

Digital Video Recorder (DVR)

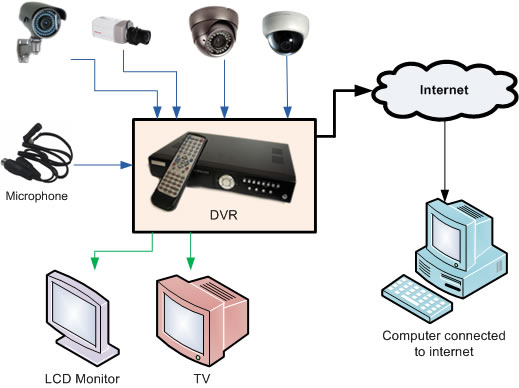

In a security monitoring system, DVR controls all connected cameras, it records activities and provide facilities for further search and checking as well as real time combination of all cameras in a single page. Usually DVRs should be connected to a TV, however some DVRs (like those we offer) can connect to TV or LCD or both.

A DVR will be identified by maximum number of cameras that can be connect to it, for instance a 4 channel DVR can accept live video feeds from up to 4 cameras. Normally DVRs accepts 4, 8, 16 or 32 channels, so for example if you want to have 6 cameras, you need an 8 channel DVR, although 2 channels will not be connected to any camera.

Our line of DVRs can be connected to internet to provide live and recorded feeds of activities to a remote computer that has access to internet. It means you will be able to check your property, employers and activities from any location on planet.

DVRs have an internal hard drive to record videos. When hard drive filled with videos it will automatically purge videos of the oldest day and replace them with new ones. It rotates the videos and allow you to have recorded videos of last few days to last few months. Number of days that a DVR can keep the videos depends on capacity of hard drive and quality of videos.


Security Cameras
Sample Dome Cameras
Sample Box Cameras
Sample Bullet Cameras
Digital Video Recorder (DVR)
Sample 4 channel DVR
Sample 8 channel DVR
Sample DVR Screen
Indoor Dome Camera with fix lens, available in 420TVL to 540TVL Indoor/Outdoor Dome Camera with varifocal lens, day/night,<br>Vandal Proof, available in 420TVL to 600TVL Indoor box camera with varifocal lens, available in 420TVL to 600TVL Indoor/Outdoor bullet camera, day/night with varifocal lens,<br>available in 420TVL to 600TVL Indoor/Outdoor bullet camera, day/night with fix lens,<br>available in 420TVL to 480TVL 4 channel standalone DVR, MPEG or H.264, one channel audio<br>comes with remote control and internet 8 channel standalone DVR, MPEG or H.264, 4 channel audio<br>comes with remote control, internet, DVD writer and USB backup Sample screen of a 4 channel DVR
